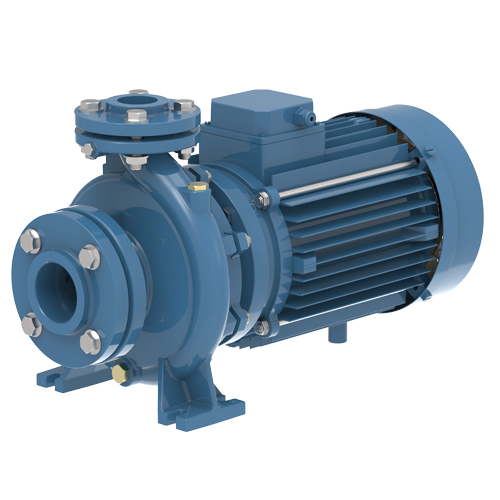

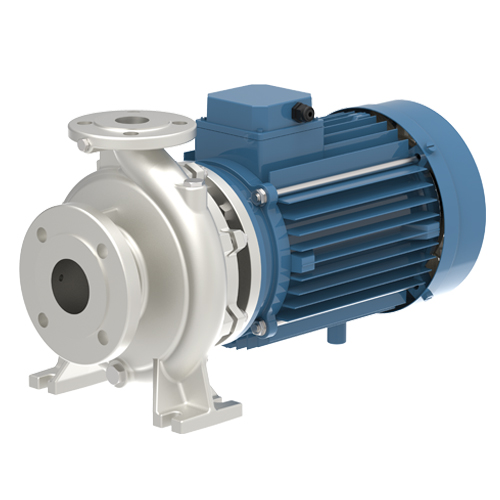

The NORTHAM NE-C series are non-self priming, horizontal, single-stage, centrifugal, end-suction pumps with axial suction
port &radial discharge port. They are close coupled with NEMA standard premium efficiency electric motors.
Features
► Available with wide range of material of construction for a large number of applications.
► Interchangeable components across the entire range of models for easier spare parts management.
► Optional wear ring is available in bronze and stainless steel to reduce wear and ease of maintenance.
► The pumps are highly efficient and have been optimized for low life cycle costs to reduce the total cost of ownership.
► Northam pump selection tool makes pump selection, submittals and techno-commercial offers to be prepared accurately &swiftly.
► We provide excellent pre and post sales experience.
► We provide best-in-class delivery times in the industry.
► Availablewithmechanical shaft seal only.
► Rotating parts are dynamically balanced which ensure vibration free performance and enhanced bearing life.
► Suction & Discharge port flanges shall be ANSI 125 or ANSI 250 as per ASME B16.1. Flanges as per DIN standard EN 1092-2 (PN 16 or PN 25) are available on request.
► High performance motor minimize noise produced by pumps during operation.
► Each pump is Hydrostatic and Performance tested at factory before dispatch.
► Gauge taps on the suction and discharge flanges provide enhanced insight into the performance of your pumps.
Flow range : 35 to 2800 GPM
Head range : 12 to 470 feet
Ambient temperature : Max. +140°F for Premium efficiency motors.
Applications
► Water supply & Pressure boosting
► Heating, Ventilation and Air-conditioning (HVAC)
► Industrial washing & cleaning systems.
► Irrigation systems
► Boiler feed and condensate transfer system
