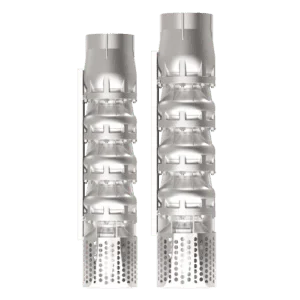

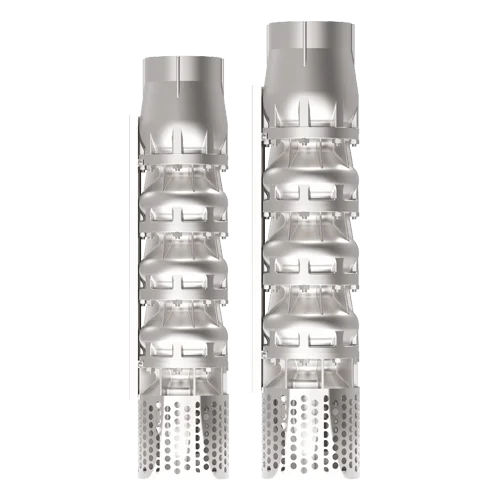

10″ Investment Cast Stainless Steel Submersible Pumps

Pump Size: 10”
Flow Ratings : 725 & 1125 GPM
Maximum Head: Up to 1400 feet
Pump Rating: 40 HP to 250 HP
Liquid Temperature: 113°F
Max. Sand Content: 50 ppm

Download Catalogue









Description

Features:

► All pumps have been designed using computational fluid dynamics to ensure maximum efficiency.
► All pumps are designed using material which can work with sand found in the deep well.
► All journal bearing and impeller wear rings are made of nitrile rubber to ensure that performance of pumps remain the same over a longer period of time.
► All pumps are provided with upthrust bearing to control axial movement of the impeller assembly during transportation as well as start-ups.
► To prevent water hammer when the pump is stopped, all pumps are provided with a non-return valve.

Applications:

  • Agriculture & Irrigation
  • Municipal water supply
  • Industrial water supply
